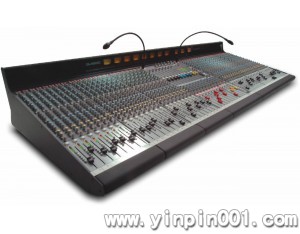

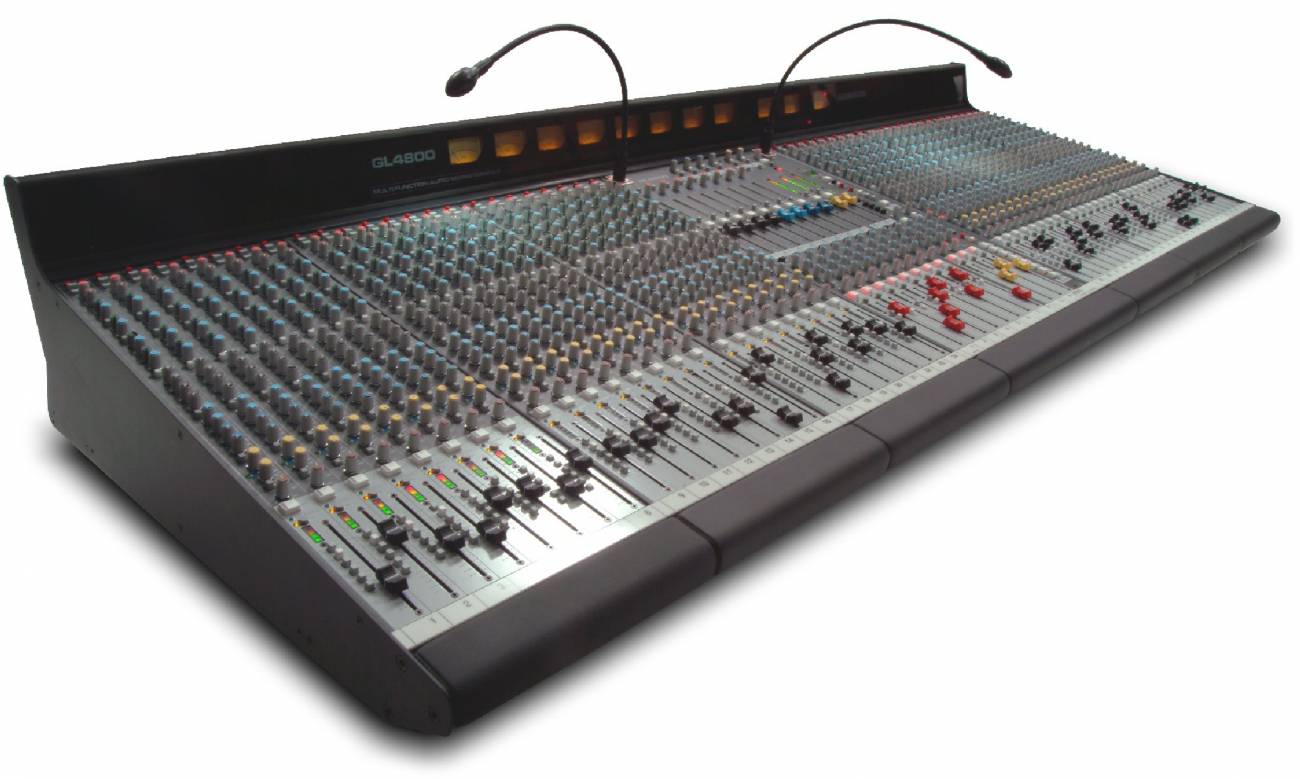

Fully featured Multi-Function Live Sound Mixing Console
Based on the highly successful GL4000, this mixer is a real thoroughbred multi-function mixer, with a mass of features and detail that makes this mixer a joy for engineers to use. This is a truly multi-functional console, offering features such as group output trims for recording, extended auxiliaries using matrix sends, multiple main outputs and trimmable direct outputs from channels.

The GL4800 is also a true workhorse: classic ALLEN&HEATH sound with a new mix head amp design, EQ section from the respected ML4000 and with solid construction, expandable frame design and an array of channel format options – it’s the Swiss Army Knife of mixers!

The GL4800 is supremely adaptable to every application and is perfect for engineers in both live sound and recording. Rental companies will appreciate a mixer which will work hard for its living, delivering exceptional audio performance every day of the week.

Features

• 24, 32, 40, 48 channel frames
• A,B,C,D mono/stereo channel options
• Multi-functionality for FOH/Monitor mixing and live recording
• LR and M main mix
• 8 Audio groups with pan and routing to LR and M
• 11x4 Matrix
• 10 Auxiliary sends with faders, inserts and XLR
• Aux 10 can provide channel direct output pre/post and level trim
• Group out pre/post switching and level trim for recording
• Per channel pre/post fader aux switching for unlimited flexibility
• Second LR2 output with pre/post fader selection and level trim
• Output reverse mode to swap aux inserts and XLR with matrix and LR2
• 2-track replay to LR and monitor
• Stereo channel line inputs can be assigned independently to LR
• 4 band, 4 sweep EQ with switched Q on midrange
• Swept 20-400Hz high pass filters
• Matrix to aux link for quick monitors and grouped effects
• 128 snapshot memory mute automation with preview and safes functions
• 8 Mute groups or scenes
• Solo-in-Place with toggle last and safes
• Single press clear or set all mutes function
• Mutes on all fader masters
• Meters on all buses to prevent mix overload
• Simultaneous metering of the groups, LRM and auxes
• Integral LED-illuminated moving coil VU meterpod
• Simultaneous LED bar and VU monitor metering
• Mono/stereo PFL with trim
• PFL override AFL for logical input/output monitoring
• Engineers wedge fader control in monitor mode
• Separate headphones and local outputs
• Talkback to LR, M, groups, matrix, and to each aux
• Electronically balanced XLR outputs with +27dBu drive capability
• Preamp +34dBu maximum input capability for mic or line
• Ultra low noise mix head amp design
• Balanced inserts with separate send and return sockets
• 100mm, premium grade dual rail faders
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Built-in combiner for redundant backup power supply
• Sys-Link V2 console input linking option
