( 商品编号ECS002752 )SHURE 舒尔 UA860WB 无源无指向性天线
商品描述

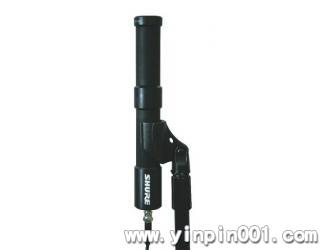

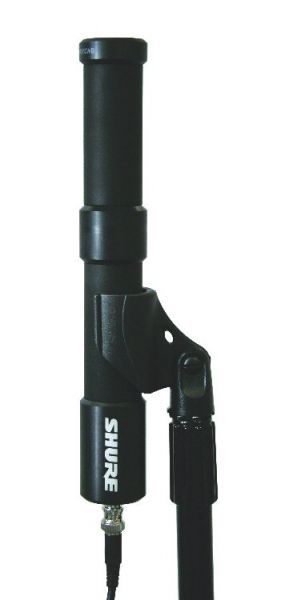

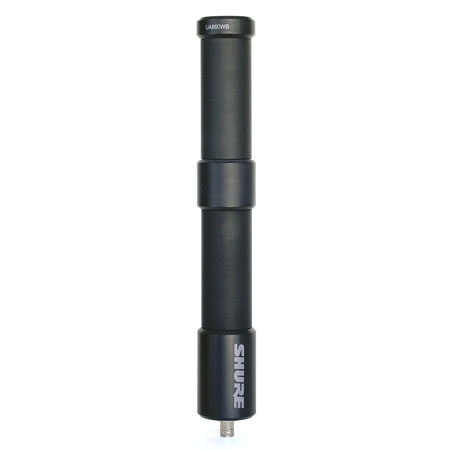

Shure UA860SWB Antenna Description:
Back in stock as of 8/23/2010...The Shure UA860WB is a Passive Omnidirectional Antenna. More Specifically, the UA860WB is a passive wide band UHF omnidirectional antenna (500-1100Mhz). The UA860WB is weather resistant and suitable for use outdoors.
RF Frequency Range
500-1100 MHz
Voltage Standing Wave Ratio (VSWR)
<2:1 referenced to 50Ω
Reception Pattern
Omnidirectional dipole
Connector
Female, BNC-type
Dimensions
318 mm H X 64 mm Dia. (12.5 X 2.5 in.)
Stand Adapter
Break resistant, with standard (UNS) 5/8 in.–27 thread
