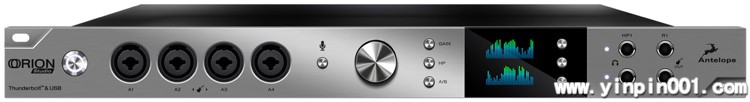

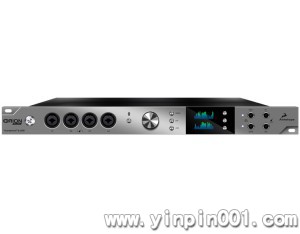

( 商品编号YP010039 )Antelope Audio Orion Studio USB/雷电音频接口
商品描述
Antelope Audio Orion Studio 是一款12 x 16 雷电/USB音频接口、转换器，带12个话放，独有的DSP加速效果，64位声学时钟和母带级的监听输出接口。
一台强大的工作室控制中枢
Antelope Audio把他们饱受好评的Zen Studio和Orion两个身上最好的特点全部集合到现在仅仅只有1U机身的Orion Stuido中，Orion Studio改善了音质，提升了性能。 一流的Orion Studio音频接口/转换器提供12个高端话放输入接口同时自带DSP效果器，提供像兵工厂一样的各种效果器比如AuraVerb，一款惊人的硬件级混响效果器。 Antelope的雷电单元提供难以察觉的极低的延时，在MAC没有电源的录音环境下都可以将电脑风扇的噪音将至最小。 Orion Studio提供2个母带级的监听输出接口，并且在前面板有A/B切换开关，ADAT、S/PDIF、时钟接口以及最新版本的Antelope 控制软件。
Antelope Audio Orion Studio 简介：
- Unmatched sonics, latency, and I/O
- Harness the power of onboard DSP
- Cutting-edge clocking and signal routing
- Ultra-fast conversion lets you monitor FX in real time
Unmatched sonics, latency, and I/O
Don't be fooled by its slender form factor; Orion Studio is a top-notch professional tool with unmatched sonics, designed and built without compromise. With both Thunderbolt and USB connectivity, Orion Studio can process 192kHz audio at ludicrous speed (we're talking 100uS round-trip delay). What's more, Orion Studio features 12 high-end microphone preamps, 16 analog outputs, a duo of mastering-grade monitor outs, two hardware inserts, two re-amp outputs, and a talkback mic.
Harness the power of onboard DSP
Antelope Audio fitted the Orion Studio with their proprietary DSP engine, which they optimized to run custom equalization, compression, and reverb plug-ins. This potent processing arsenal includes Antelope's new AuraVerb, as well as other effects to be released - all included at no additional cost. Antelope's beefy DSP engine is built on a field-programmable gate array IC with mammoth parallel-processing capability, which lets you enjoy rapid simultaneous processing of multiple effects, accelerating your workflow like you won't believe.
Cutting-edge clocking and signal routing
Orion Studio comes with the latest generation of Antelope's software control panel for Mac OS X and Windows. It's easy to operate, giving you a color-coded routing matrix with four independent mixers and smart integration of DSP effects. What's more, Orion Studio is fully supported by Antelope Audio's state-of-the-art 64-bit Acoustically Focused Clocking (AFC) jitter-management technology, which is found in top mastering facilities worldwide. Antelope's AFC delivers the most analog-sounding audio conversion we've heard here at Sweetwater.
Ultra-fast conversion lets you monitor FX in real time
Orion Studio's whiplash-quick conversion capability means you can monitor real-time effects during recording and mixing. Take Orion Studio's re-amping feature: it routes signals through two transformers, making it perfect for plugging in your guitar (or other instrument), and tweaking a selection of great-sounding effects - all while monitoring in real time! Orion Studio gives you a new level of performance in a value-packed, full-featured interface/converter.
Antelope Audio Orion Studio 特点：
- 12个高质量话放，16个模拟输出接口
- 自带对讲话筒和耳机路由接口
- 2个母带级立体声输出接口带A/B切换
- 内置DSP引擎 (includes new AuraVerb)
- Antelope's superior AFC jitter-management technology
- Latest generation of Antelope's software control panel:
- Color-coded routing matrix with 4 independent mixers
- Smart integration of DSP effects
- 雷电和USB接口
- ADAT optical I/O (x 2)
- S/PDIF I/O
- Word clock I/O
使用Antelope Audio Orion Studio来升级你的工作室装备吧！
技术参数
| 接口 | 雷电, USB |
|---|---|
| 形状 | 机架式 |
| 同时使用 I/O | 32 x 32 |
| A/D 采样率 | 24-bit/192kHz (max) |

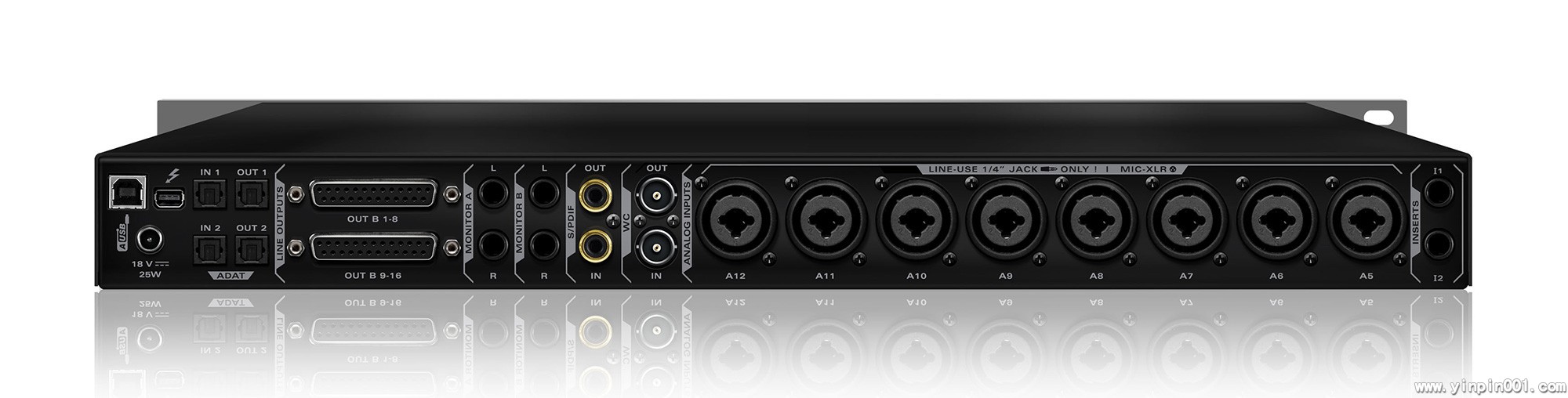

| 模拟输入接口 | 12 x XLR-1/4" combo, 2 x 1/4" TRS inserts |
| 模拟输出接口 | 4 x 1/4" (monitor A, monitor B stereo outs), 2 x 1/4" (headphones), 2 x 1/4" (direct outs), 2 x DB25 |
| 数字输入接口 | 1 x S/PDIF, 2 x Optical ADAT |
| 数字输出接口 | 1 x S/PDIF, 2 x Optical ADAT |
| 话放数量 | 12 |
| 幻象电源 | 12 |
| 时钟接口 | 1 x BNC in, 1 x BNC out |
| 机架空间 | 1U |
| 型号 | Orion Studio |
