商品描述

RME HDSP 9632被宣称是“世界上最全能的音频接口”,它在继承了HDSP系列优秀品质的同时,又极大的发挥了HDSP系统的潜能。他没有9652那么多接口,不过它带有立体声模拟输入输出,而且同样支持从32kHz到192kHz的采样率。

新的HDSP 6932 PCI声卡支持最新的192kHz,24bit采样,标称信噪比达到了诱人的110dB。它使用起来得心应手。所有的输入和输出(最多16路)可以同时使用,有多种可选的接口类型,只需要更换外接连线就可以。外加的扩展卡不需要占用PCI插槽,不过会占用电脑机箱背板上的PCI位,因此还是会少一个可用的PCI槽。

显然,对于高采样率来说时钟稳定性是极其重要的。HDSP 9632使用了全新的时钟保护电路,被称为“稳固时钟(Steady Clock)”。这种时钟技术能够在保证输入数字信号质量不受损的同时最大限度的抑制抖动。根据标称值,在PLL模式下(例如与外部数字信号同步)抖动不超过1ns,而在内部同步模式下则少于0.8ns。

主卡兼容PCI 2.1插槽,通过两个D-sub接口上的连线进行音频信号传输,同时在卡的面板上还有两个ADAT光纤插口。ADAT支持标准8声道48kHz的数字信号,或4声道的96kHz S/MUX格式信号。需要的话,也可以在软件中设置为S/PDIF信号接口。

两个D-sub接口外接线提供了全部的音频插口。其中,模拟输入/输出通过15针D-sub接口实现,而另一个9针的D-sub则提供S/PDIF数字接口。S/PDIF数字输入/输出为两个phono插口,理论上最高支持192kHz的采样频率――不过这需要更高质量的数字线。除此以外,也可以选择平衡卡农接口连线,以得到AES-EBU的数字接口。

在送测的版本中,模拟信号是通过卡农接口传输的,同时带有一个耳机输出和一对MIDI输入输出。而实际上卡农接口的连线是需要另购的,随卡的基本配置是非平衡莲花接口的。卡上的输入和输出口电平可以独立的调节,有三种常用的模式可以选择,包括熟悉的+4dBu和-10dBu标准。

HDSP 9632还配有经过升级的Totalmix实时DSP软件混音/控制台,提供512通道音频混音控制,40bit内部精度,以及任一通道的零延迟监听。这意味着在大多数情况下,使用者不再需要外接硬件调音台了。混音输出可以被独立的分配给立体声主输出或耳机输出。最新版本支持新的矩阵和多窗口视窗,例如支持AC3环绕声DVD编码。

和同系列其它产品一样,HDSP 9632支持RME的“零CPU占用”技术,采用内置DSP芯片来处理音频信号,而不占用系统资源。我这里提到DSP,实际上――和其他同系列产品一样――这块卡上使用的是FPGA,而不是传统的DSP芯片。关于FPGA与传统DSP孰是孰非的讨论已经太多了,而RME仍然相信这种设计能够提供更灵活的运用方式。

随包装配的光盘中提供了Windows 2000和XP的驱动(支持MME,GSIF和ASIO 2.0)。官方网站上能更新到的最新驱动版本号为2.94,2005年9月更新。Mac驱动没有包含在光盘里,不过官方网站上能够下载到最新的驱动,最新版本号为1.6b。光盘中包括的软件还有Digichek和Meter Bridge(见下),以及Flash ROM刷新工具和41页的PDF格式用户手册。值得一提的是,“BIOS保护”技术确保了一旦升级失败,卡上的备用ROM仍然可以保证声卡的正常工作,直到EEEPROM正确刷新。





我们的指南,PCI卡的安装。



Many components use the PCI slots in a PC, the most common of which are modems, sound cards and ethernet (network) cards.许多组件中使用个人电脑的PCI插槽,最常见的有调制解调器,声卡和以太网(网络)卡。

This guide will take you through the installation process with the use of photos and text.本指南将通过与照片和文字使用的安装过程。

To install your PCI card you will need:要安装您的PCI卡,您将需要:

  • Compatible modem, ethernet card, sound card or other PCI card.兼容的调制解调器,以太网卡,声卡或其他PCI卡。
  • Cross-point (Philips) Screwdriver suitable for your PC case.交叉点(飞利浦)螺丝刀适当情况下为您的电脑。
  • Fixing screw (usually comes with the case).固定螺丝(通常是与本案)。
  • Anti-Static Wrist-strap (if available).防静电腕绳(如果有的话)。



Locating the PCI slots定位的PCI插槽

When the cover is removed, the first thing to do is to locate the PCI slots on your motherboard.当盖被拆除,首先要做的是找到你的主板上的PCI插槽。 Different motherboards have different amounts of PCI slots, for example, you may already have a PCI card installed, in which case just choose an empty slot to install your new PCI card.不同的主板有不同数量的PCI插槽,例如,您可能已经安装了PCI卡,在这种情况下只需要选择一个空槽安装新的PCI卡。

you can see an example of a PCI slot in fig 1.1 below:你可以看到下面的PCI插槽, 图1.1的一个例子:

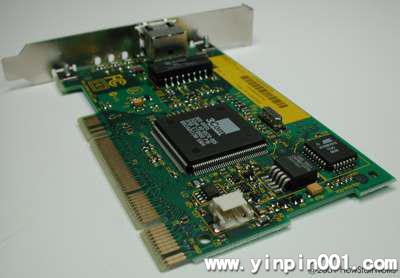

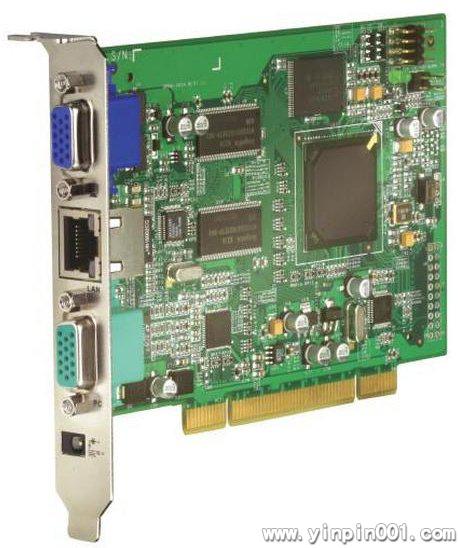

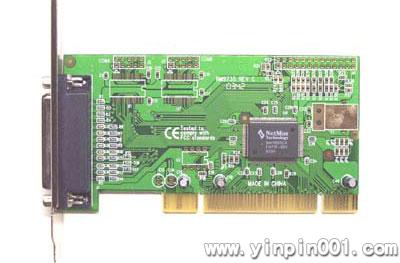

In fig 1.2 above you can see a typical PCI card, we have pointed out an alignment notch ( A ), this is used to align the card with the slot. 图1.2在上面你可以看到一个典型的PCI卡,我们曾指出一个对齐缺口( ),这是用于对齐卡插槽使用。 If you take a look at the slot in fig 1.1 you can see how it is aligned with the card.如果你的卡了一眼,在图1.1的插槽对齐,你可以看到它是如何。



Install modem/sound card/ethernet card 安装Modem /声卡/以太网卡

Once you have chosen which PCI slot you want to use, remove the "blank" from the back of the case to make room for the card.一旦你选择了你想要的PCI插槽使用,请从案件的背面的“空白”,使该卡的空间。 If you are unsure how to remove the "blanks" see your PC case's manual.如果您不确定如何消除“空白”看到您的PC机箱手册。

note: Blank refers to a small piece of metal that is inserted into the back of the case, in alignment with the PCI slots. 注:空白指的是一个小的金属片是插入到案件的背面,在与PCI插槽对齐。 Most blanks are fixed into position with a screw, but different cases use different methods.大多数毛坯到用螺丝固定的位置,但不同情况下使用不同的方法。

After removing the blank, align the card with the slot and gently but firmly push the card into position.删除后的空白,对准卡插入插槽,然后轻轻但坚定地推到定位卡。

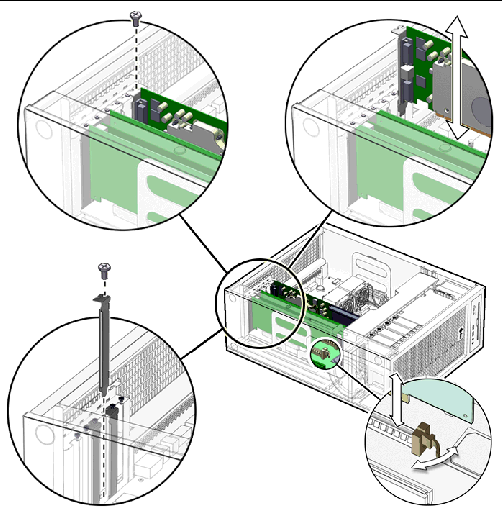

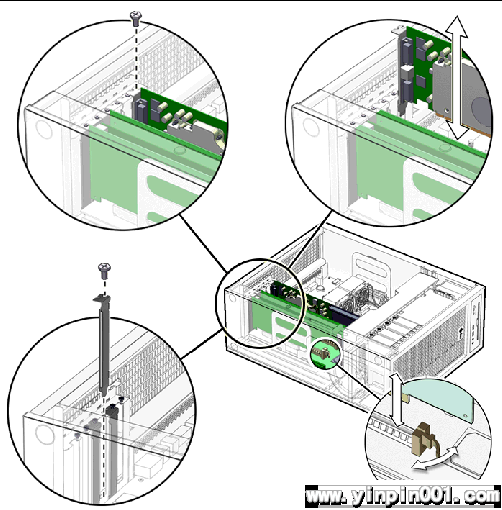

Once the PCI card is seated firmly into place fig 1.3 , insert the fixing screw fig 1.4 , check to make sure nothing has been loosened during installation and then replace the case cover.一旦就位1.4 PCI卡到位牢牢图1.3,图插入固定螺丝,检查以确保没有被安装在松动,然后更换机壳。

When you reboot your machine, your operating system should find the card automatically.当你重新启动机器,您的作业系统应该自动找到该卡。 It will then prompt you for the driver disk/cd that came with your card, insert the CD and follow the on-screen instructions.然后它会提示驱动程序磁盘/光盘中来到你的卡,插入光盘的时候你并按照屏幕上的说明。

If you here a sequence of beeps when you boot your machine back up, then the card may not be fully seated in the slot.如果你在这里一个序列的蜂鸣声当你启动你的机器备份,然后在卡可能不完全固定在插槽。

If you encounter a problem with interrupt requests, and/or intermittent problems, try using a different PCI slot, or adjusting the IRQ settings in your bios.如果遇到中断请求的问题,和/或间歇性问题,尝试使用不同的PCI插槽,或调整你的BIOS中的IRQ设置。
