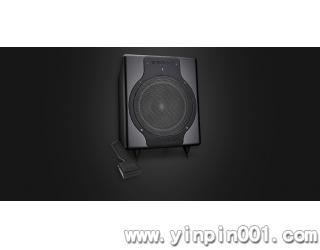

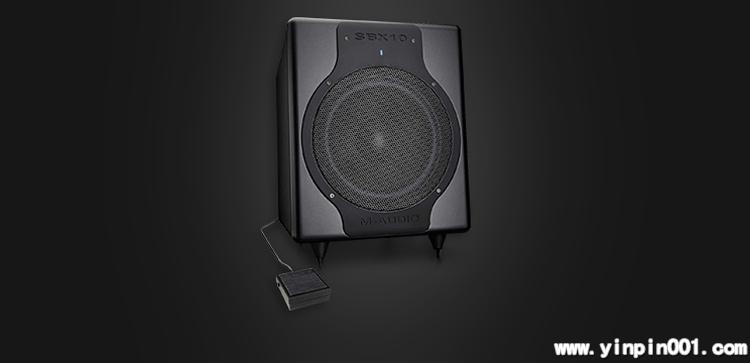

( 商品编号YP010021 )M-Audio SBX10 240W有源低音音箱
商品描述
M-Audio SBX10主要特点
- 10” fiberglass/paper composite cone driver with oversized magnet and high-temperature 2” long-throw voice coil
- 240-watt Class A/B amplifier with all-discrete transistor design
- Flared rear bass-reflex port
- Variable 50-200Hz crossover
- 20-200Hz low frequency response
- Adjustable gain (-30dB to +6dB)
- Balanced/unbalanced XLR, balanced/unbalanced 1/4” TRS and RCA inputs
- Balanced/unbalanced XLR and balanced/unbalanced 1/4” TRS outputs allow easy setup of 2.1 monitoring systems
- Includes subwoofer bypass footswitch
- Phase switch (0°/180°)
- Over-temperature protection
- Vinyl-covered high-density internally braced 3/4” MDF cabinet with 1” front and back baffles
- Removable grill
- Removable feet
M-Audio SBX10技术参数
- Type: Bass-reflex active powered subwoofer
- Woofer Driver: 10-inch composite (treated paper/fiberglass) cone with high-temperature voice coil and damped rubber surround
- Frequency Response: 20-200Hz (-3dB)
- Crossover: HP/LP linked filter sweepable from 50-200Hz; 24dB/octave 4th-order alignment
- Input Sensitivity: 80mV pink noise input produces 100dBA output SPL at one meter with volume control at maximum
- Adjustable Gain: (-30dB to +6dB)
- Amplifier: 240 watts average power into 4, discrete transistor design
- Signal-To-Noise Ratio: 96dB (A-weighted)
- THD at Rated Power, Mono Mode: 0.019%
- Inputs: Two XLR balanced/unbalanced inputs; two TRS balanced/unbalanced inputs; two unbalanced RCA
- Outputs: Two XLR balanced/unbalanced outputs for satellites; two TRS balanced/unbalanced outputs for satellites
- Controls: Volume/gain control, phase inverse switch, variable crossover control, subwoofer bypass footswitch jack
- Input Impedance: 20k ohms balanced, 10k ohms unbalanced
- Maximum Input Level: +20dBU
- Protection: Over temperature, turn-on/off transient, subsonic filter, external mains fuse, DC protection, over current protection
- Indicator: Power on (blue) or standby/bypass (red)
- Power Requirements: Dual-voltage (selectable by rear-panel switch) for either 100-120V/~50/60Hz or 220-240V/~50/60Hz; powered via detachable grounded IEC cable
- Cabinet: Vinyl-laminated high-density internally braced 3/4” MDF cabinet with 1” front and back baffles
- Dimensions: 15.5 in. (h) x 13 in. (w) x 17.25 in. (d); 39.4 cm (h) x 33 cm (w) x 43.8 cm (d)
- Shipping Weight: 54.6 lbs.; 24.75 kg
M-Audio SBX10是一款10英寸低音音箱，240瓦，分频可调50-200Hz，可连接踏板旁通低音（赠送）。
增益可调-30dB到+60dB，平衡XLR卡侬、平衡TRS和RCA莲花输入，平衡XLR卡侬和平衡TRS输出，可轻松接入2.1系统。带过热保护。
